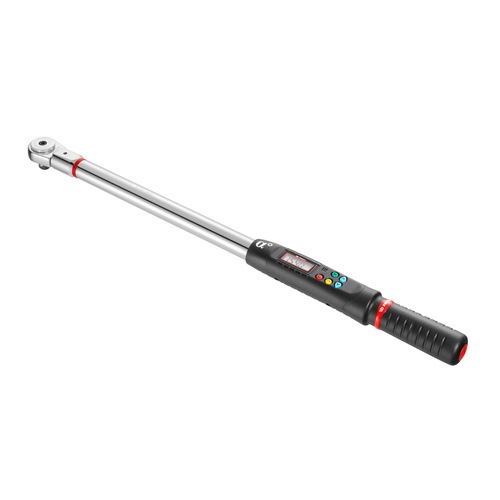

E.316A340S E.316A - Electronic torque / angle wrenches with ratchet
Standards: NF EN ISO 6789, ISO 6789, DIN EN ISO 6789
- Accuracy: - Torque: ± 2% between 20% and 100% wrench capacity. - Angle: ± 2°.
- End fitting: 9 x 12 and 14 x 18 mm.
- Measuring mode: peak or follower.
- Locking keypad (the operator has access only to program choices and result memorising).
- Measuring unit: N.m, lbf.ft, lbf.in, kg.cm and deg.
- Presetting possible of 9 torque and/or angle values.
- Memory 250 values with PC USB link.
- Supplied with calibration certificate.
- Supplied in plastic case and foam module.
| ||E.316A340S |
|Length L [mm] ||650.0 |
|Capacity [Nm] ||17 - 340 |
|Square [in] ||1/2 |
|Weight [Kg] ||2.9 |
|Ratchet ["] ||S.382V |
