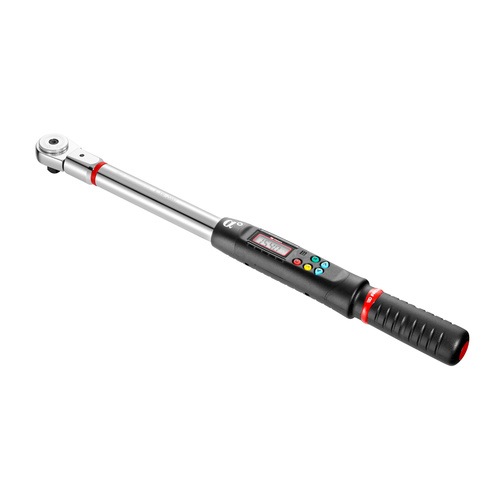

E.316A200S E.316A - Electronic torque / angle wrenches with ratchet
Standards: NF EN ISO 6789, ISO 6789, DIN EN ISO 6789
- Accuracy: - Torque: ± 2% between 20% and 100% wrench capacity. - Angle: ± 2°.
- End fitting: 9 x 12 and 14 x 18 mm.
- Measuring mode: peak or follower.
- Locking keypad (the operator has access only to program choices and result memorising).
- Measuring unit: N.m, lbf.ft, lbf.in, kg.cm and deg.
- Presetting possible of 9 torque and/or angle values.
- Memory 250 values with PC USB link.
- Supplied with calibration certificate.
- Supplied in plastic case and foam module.
Information
 | E.316A200S |
Length L [mm] | 530.0 |
Capacity [Nm] | 10 - 200 |
Square [in] | 1/2 |
Weight [Kg] | 2.7 |
Ratchet ["] | S.382V |
