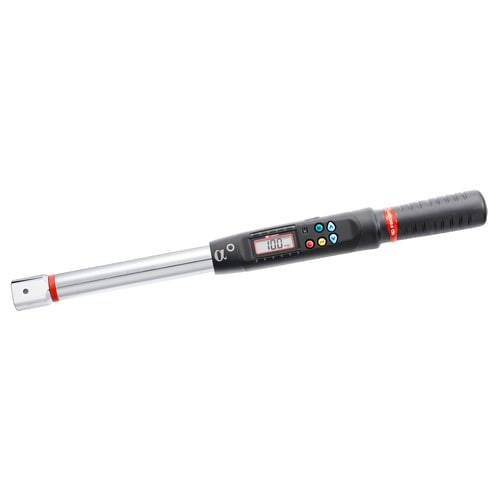

E.316D - Electronic torque / angle wrenches

E.316D - Electronic torque / angle wrenches

Standards: NF EN ISO 6789, ISO 6789, DIN EN ISO 6789

  • Accuracy: - Torque: ± 2% between 20% and 100% wrench capacity. - Angle: ± 2°.
  • End fitting: 9 x 12 and 14 x 18 mm.
  • Measuring mode: peak or follower.
  • Locking keypad (the operator has access only to program choices and result memorising).
  • Measuring unit: N.m, lbf.ft, lbf.in, kg.cm and deg.
  • Presetting possible of 9 torque and/or angle values.
  • Memory 250 values with PC USB link.
  • Supplied with calibration certificate.
  • Supplied in plastic case and foam module.

References

Length L [mm]Capacity [Nm]Weight [Kg]
E.316-135D375.06.7 - 1351.5
E.316-200D474.010 - 2002.4
E.316-30D360.01.5 - 301.5
E.316-340D594.017 - 3402.6
