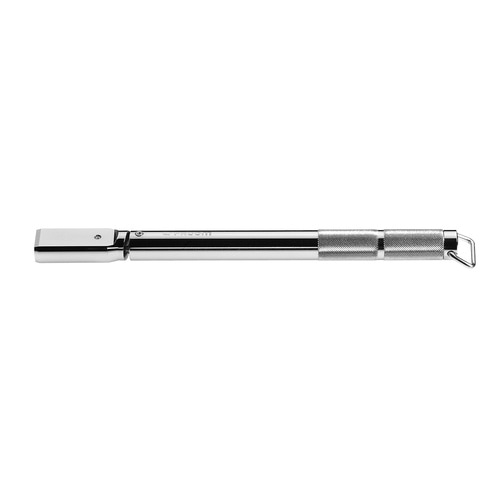

R-J-S.446 - "Non vernier" wide angle adjustable wrenches
Standards: NF EN ISO 6789, ISO 6789, DIN EN ISO 6789
- Accuracy: ± 8%.
- Proven reliability: 50,000 cycles.
- End fitting: 9 x 12 or 20 x 7 mm.
- Wrenches adjustable with a torquemeter, see range of torque controllers.
- Wrenches supplied with ISO 6789 calibration certificate.
- Wrenches supplied in plastic protection tube.
References
 | Length L [mm] | Attachement ["] | Capacity [Nm] | Weight [Kg] | Square [in] |
|---|
| J.446-50 | | 20 x 7 | 10 - 50 | 0.49 | |
| R.446-25 | 214.0 | 9 x 12 | 5 - 25 | 0.38 | 1/4 |
| S.446-100 | | 20 x 7 | 20 - 100 | 0.84 | |
