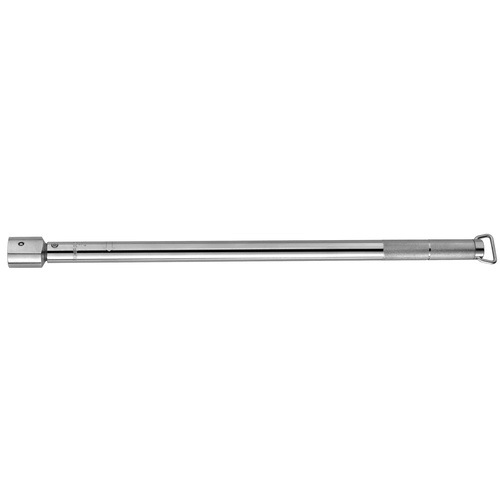

Non vernier adjustable click wrenches

Non vernier adjustable click wrenches

Standards: NF EN ISO 6789, ISO 6789, DIN EN ISO 6789

  • Accuracy: ± 4 %.
  • Proven reliability: 100,000 cycles.
  • End fitting: 9 x 12 or 14 x 18 mm.
  • Wrenches which can be preset and used in tightening and untightening.
  • Torque adjustment with a key using a control bench, see range of torque controllers.
  • Knurled metal handle.
  • Numbered wrenches supplied in plastic protection tube.

References

Length L [mm]Attachement ["]Capacity [Nm]Weight [Kg]
J.248-50D331.09 x 1210 - 500.74
R.248-25D9 x 125 - 250.28
R.344DA9 x 121 - 50.24
S.248-100D399.09 x 1220 - 1000.88
S.248-200D464.014 x 1840 - 2001.1
S.248-340D618.014 x 1860 - 3401.4
