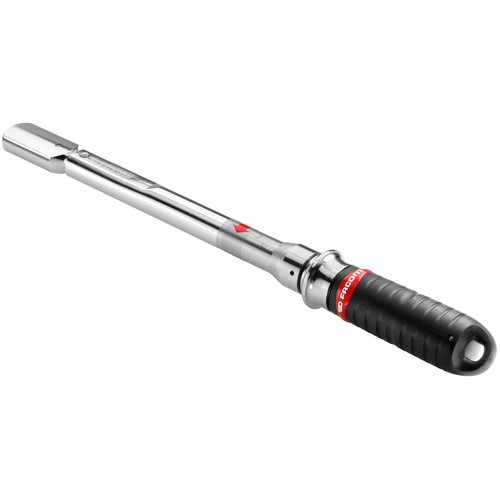

S.306R - Click wrenches with attachment 20 x 7 mm
Standards: NF EN ISO 6789, ISO 6789, DIN EN ISO 6789
- Factory accuracy: ± 2%.
- Reliability of mechanism: 50,000 cycles (wrenches --> 200 N.m).
- Use possible with accessories attachment 20 x 7 mm.
- One-way wrenches usable for unscrewing by reversing the bits.
- Numbered wrenches supplied with ISO 6789 calibration certificate.
- Wrenches supplied in plastic protection tube.
References
 | Length L [mm] | Attachement ["] | Capacity [Nm] | Graduation [Nm] | Weight [Kg] |
|---|
| S.306-100R | 420.0 | 20 x 7 | 20 - 100 | 1.0 | 1.0 |
| S.306-200R | 510.0 | 20 x 7 | 40 - 200 | 1.0 | 1.3 |
| S.306-350R | 698.0 | 20 x 7 | 70 - 350 | 2.0 | 1.9 |
